USB DeskTop Reader RFID UHF con Multiplexer per 2 antenne esterne Sma – RED.MRU80-M2-U
Frequenza Standard Comunicazione Performance / Antenne Modalità Operative
 RFID in Banda UHF EPC 865-868 MHz (EU) 902-928 MHz (FCC)  UHF EPC Class1 Gen2 ISO 18000-6  USB 2.0 o RS232  Fino a 2 metri.
2 x antenne esterne, Multiplexer integrato
 ISO Host Mode, Scan Mode, Emulazione Tastiera

RED.MRU80-M2 RedWave USB Controller RFID UHF EPC

Low Cost High Performance DeskTop Reader RFID UHF multi-protocollo interfaccia USB ed emulazione tastiera per la lettura/scrittura transponders UHF EPC (860 – 960 MHz). 2 x antenne esterne, Multiplexer integrato

Desktop Reader RFID UHF USB – famiglia RedWave by RFID Global. Standard ISO 18000-6 UHF EPC per applicazioni di logistica, industria, controllo di produzione, workstation desktop, smart parking, etc…

RedWave RFID reader powered by
Logo_FEIG OBID-by-FEIG-i-scan_UHF



Download Datasheet
RED.MRU80-M2-U RedWave Short Range Reader RFID UHF e Antenne

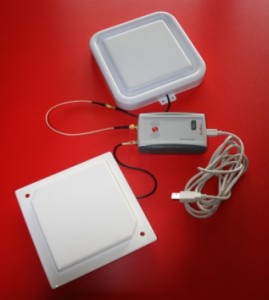

RED.MRU80-M2-U RedWave Short Range Reader RFID UHF con 2 Antenne UHF

Combinando piccole dimensioni, elevate performance e basso costo, il Controller Short Range Reader RFID UHF ISC.MRU80-M2 della nuova Famiglia RedWave UHF è dotato di multiplexer integrato, dispone di 2 uscite d’antenna con attacco SMA, 2 modelli con interfacce (RS232 o USB 2.0), il tutto con un limitato consumo energetico (max. 2 W) e alimentazione attraverso la porta USB.

Il Multiplexer intelligente consente l’attivazione automatica delle 2 antenne o la gestione host dell’accensione di una o entrambe le antenne RFID,

Nella versione USB è possibile utilizzare la modalità di lettura in emulazione tastiera.

  • Box Desktop compatto 110 x 70 x 27 mm.
  • Interfaccia Host: USB 2.0 (modello RED.MRU80-M2-U) o Seriale RS232 (modello ID RED.MRU80-M2-A).
  • Potenza RF: 170 mWatt configurabile via software
  • Performance di lettura e scrittura fino a 2 metri (dipende da Tag ed Antenne).
  • Funzioni di Anti collisione (lettura multipla di etichette).
  • Controller per tag standard UHF EPC ISO 18000-6.
  • Modalità operative: ISO Host Mode, Scan Mode, Keyboard Emulation (USB).
  • Indicatore ottico Led.
  • Connessioni d’antenna: 2 x SMA-Female (50 ohm) – Multiplexer RFID UHF integrato.
  • Firmware upgradabile attraverso Flash-EEPROM

Modelli RFID UHF della serie RedWave RED.MRU80:

RED.MRU80 Famiglia RedWave Controller RFID UHF

RED.MRU80 Famiglia RedWave Controller RFID UHF: USB, RS232 o Ethernet – antenna integrata – 1 o 2 antenne esterne

  • RED.MRU80-M2-A. RS232 RedWave Short Range Controller RFID UHF EPC – RS232, 2 uscite SMA
  • RED.MRU80-M2-U. USB RedWave Short Range Reader RFID UHF EPC – USB, 2 uscite SMA
  • RED.MRU80-M2I-U. USB RedWave DeskTop Controller RFID UHF EPC – USB, 1 uscita SMA + Antenna integrata
  • RED.MRU80-M2-E. Ethernet RedWave Short Range Controller RFID UHF EPC – Ethernet, 2 uscite SMA

Modelli :

  • ID RED.MRU80-M2-U. USB RedWave Short Range Reader RFID UHF EPC with 2 external multiplexed antenna (not included). Antennas: 2 x SMA-female plug for external UHF antenna (not included). Host Interfaces: USB 2.0. Operating frequency: 860 to 960 MHz (software adjust) UHF EPC Class 1 Gen 2 – ISO 18000-6. RF power up to 170 mW. Power consumption: max. 2 W. Power supply: via USB (5 Volt). Read Range: up to 200 cm with external Antenna (depending on tag & antenna gain). Dimensions: 110x70x27 mm. Reader modes: FEIG ISO Host Mode, Scan Mode, Keyboard Emulation. Firmware upgradable. Included MiniUSB cable. – (pn 9916-854-00)
  • ID RED.MRU80-M2-A. RS232 RedWave Short Range Controller RFID UHF EPC in case for 2 external multiplexed UHF antenna (not included). Antenna : 2 x SMA-female plug. Host Interfaces: RS232. Operating frequency: 860 to 960 MHz (software adjust) UHF EPC Class 1 Gen 2 – ISO 18000-6. RF power up to 170 mW. Power consumption: max. 2 W. Power supply: 5 Volt via RS232 cable. Read Range up to 200 cm (depending on tag & antenna gain). Dimensions: 94x63x27 mm. Reader modes: FEIG ISO Host Mode, Scan Mode. Firmware upgradable. Included RS232 cable with plug for power (Power Supply not included, use 1689-000-00). – (pn 9916-850-01)

Opzioni:

  • ID ISC.ANT.U160/160-EU – (pn 9916-868-16) Antenna UHF. Circular polarized Panel Antenna for operating frequencies in the UHF ranges 865-870 MHz (EU Region). Gain: 4,0 dBic @ 866 MHz. Antenna connection SMA-Male socket (50 Ohm). Dimensions (WxHxD): 162x162x16 mm.
  • ID ISC.ANT.U160/160-MS – (pn 9916-868-00) Mounting Set for ISC.ANT.U160/160 UHF Antenna, comprende il supporto (EW.110422.01).
  • ID ISC.ANT.U150D-EU – (pn 9916-868-15) Compact Round Antenna UHF. Circular polarized Panel Round Antenna for operating frequencies in the UHF ranges 865-870 MHz (EU Region). Gain: 4,0 dBic @ 866 MHz. Antenna connection SMA-Female socket (50 Ohm). Dimensions: diam. 150 mm. – depth 16 mm.

Low Cost High Performance Desktop Reader RFID UHF multi-protocollo di terza generazione per la lettura/scrittura transponders UHF EPC (860 – 960 MHz). 2 x antenne esterne, Multiplexer integrato; applicazioni di logistica, industria, Retail, Fashion, controllo di processo, workstation desktop, smart parking, etc…

Settori Applicativi RFID
Settori di Mercato RFID

Alcuni casi applicativi di successo in cui sono stai utilizzati i Reader RFID UHF della serie RedWave RED.MRU80:
