Controller RFID HF Multi-ISO Wi-Fi famiglia RedWave Smart FlyBoard Web Cloud Device con CPU & I/O, antenna esterne
Frequenza Standard Comunicazione Performance / Antenne Modalità Operative
 NFC – RFID in Banda HF – 13,56 Mhz  Multi ISO: ISO 15693, ISO 14443-A/-B, NFC Firmware Calypso (ticketing)  Wi-Fi 802.11 b/g/n. Web Server on board  Fino a 26 cm (dipendente da tag e antenna) Antenna Esterna 50 ohm  ISO Host Mode, Ethernet Notification Mode, Web Cloud

RED.MR80.FLY-W Mid-Range Controller RFID HF Wireless RedWave SmartFly Wi-Fi

Download Datasheet
RedWave RFID Smart FlyBoard collegamento al Web Server On Board con Tablet
RedWave Smart FlyBoard Ethernet for RFID OBID Controller HF & UHF with CPU & I/O. OEM Developer Smart Board for Applications: Sensors and automation, Internet of Things, Building automation and remote control, Industrial/process management. CPU: 16 Bit Processor 16Mips@32Mhz, 256K Flash, 16K Ram. Transceiver: 10/100 Base-T Ethernet controller. Connectors: 1 x Lan Ethernet RJ45 (to host), RJ50 10 wire for external I/O, power connector (12 VDC not included). Standard FirmWare: on board OBID FEIG management protocol, possibility of custom applications (on request). Configuration mode: low-level commands, client application and via Web Server on Board. Protocol Modes: FEIG ISO Host Mode, Direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Interface for RFID FEIG controller HF & UHF: internal TTL (5V) or RS232 (12V). MiniUSB for Firmware upgrade & debug. I/O on external RJ50 (10 wire): 4 x digital input, 3 x digital output, 1 x output relè. Internal I/O & interface: 4 x digital input, 4 x digital output, 1 x buzzer, 1 x Led bicolor, 1 x SPI interface, 1 x I2C Interface. Real Time Clock/Calendar with battery. Slot for Micro SD memory card. OEM Version " data-image-caption="

RedWave Smart Cloud NFC ed RFID HF – collegamento al Web Server On Board con Tablet

" data-medium-file="https://i0.wp.com/www.rfidglobal.it/wp-content/uploads/RedWave_RFID_Smart_FlyBoard_WebServer_Tablet.jpg?fit=300%2C220&ssl=1" data-large-file="https://i0.wp.com/www.rfidglobal.it/wp-content/uploads/RedWave_RFID_Smart_FlyBoard_WebServer_Tablet.jpg?fit=448%2C329&ssl=1" class="size-medium wp-image-7531 " src="https://www.rfidglobal.it/wp-content/uploads/RedWave_RFID_Smart_FlyBoard_WebServer_Tablet-300x220.jpg" alt="RedWave RFID Smart FlyBoard collegamento al Web Server On Board con Tablet" width="300" height="220" /> RedWave Smart Cloud NFC ed RFID HF – collegamento al Web Server On Board con Tablet

Nota distintiva del RedWave Smart Controller RFID RED.MR80.FLY-W è la modalità con cui sono gestiti i dati "catturati" dal reader (firmware standard):

 prevede che i comandi di lettura del tag da parte del reader siano lanciati dall'host, mentre con la modalità
 l'host riceve le letture da molteplici reader RFID stando in ascolto su una predeterminata porta IP. Tra le peculiarità spicca il web server a bordo che trasforma un browser nell'interfaccia utente per configurare e gestire via web il controller RFID e i numerosi Input/Output: ciò permette la trasmissione e ricezione dati via internet, controllando così il proprio device da qualunque luogo, anche in modalità mobile.

E' prevista anche la possibilità di sviluppo di firmware custom utilizzando ambiente Open Source (C language & Open IDE), per creare soluzioni verticali ed indipendenti, stand-alone, con "intelligenza" a bordo e collegamenti ad host server via internet (cloud): il vantaggio di questa flessibilità consiste nell'introdurre rapidamente nel mercato nuovi prodotti o soluzioni anche in limitate quantità e ridurre il Time to Market!

ID RED.MR80.FLY-W – Reader RFID HF RedWave SmartFly Cloud Wi-Fi. CPU & I/O, antenna esterna.
CPU: 16 Bit Processor 16Mips@32Mhz, 256K Flash, 16K Ram. Web Server on Board. Host Interfaces: Wi-Fi controller 802.11 b/g/n. Operating frequency: 13,56 MHz. HF Multi-ISO (ISO15693, ISO14443-A/B & NFC). Antenna: SMA-female plug for external HF 50 ohm antenna (Power Supply 12VDC/2,5 A included). RF power: 250 mW. Range up to 26 cm. (depending on tag & antenna). Input/Output: 3 x digital output, 1 x relè 24 VDC/1A, 4 x digital input, 1 x buzzer, 1 x Led bicolor, 1 x SPI interface, 1 x I2C Interface. Real Time Clock/Calendar with battery. Slot for Micro SD memory card. Connectors: RJ50 10 wire for external I/O, power connector for external 12 Volt DC (not included). Power consumption: max. 3 W. Standard FirmWare: on board OBID FEIG management protocol, possibility of custom applications (on request). Protocol Modes: FEIG ISO Host Mode, Direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Dimensions: 121.9 x 78.7 x 33 mm. Firmware upgradable. – (pn 9916-554-20) " data-image-caption="

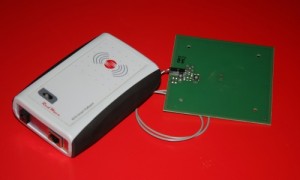

RED.MR80.FLY-W Mid-Range Reader RFID HF RedWave SmartFly Wi-Fi con antenna RFID HF OEM

" data-medium-file="https://i0.wp.com/www.rfidglobal.it/wp-content/uploads/RED.MR80.FLY-W-Mid-Range-Reader-RFID-HF-RedWave-SmartFly-Wi-Fi-Ant-Oem-Slider.jpg?fit=300%2C180&ssl=1" data-large-file="https://i0.wp.com/www.rfidglobal.it/wp-content/uploads/RED.MR80.FLY-W-Mid-Range-Reader-RFID-HF-RedWave-SmartFly-Wi-Fi-Ant-Oem-Slider.jpg?fit=500%2C300&ssl=1" class="size-medium wp-image-8389 " src="https://www.rfidglobal.it/wp-content/uploads/RED.MR80.FLY-W-Mid-Range-Reader-RFID-HF-RedWave-SmartFly-Wi-Fi-Ant-Oem-Slider-300x180.jpg" alt="Controller RFID HF RedWave SmartFly Wi-Fi RED.MR80.FLY-W con antenna RFID HF OEM" width="300" height="180" /> RED.MR80.FLY-W Mid-Range Reader RFID HF RedWave SmartFly Wi-Fi con antenna RFID HF OEM

Il Mid Range Controller RFID HF Lan Ethernet RED.MR80.FLY-E della famiglia RedWave di RFID Global combina piccole dimensioni e flessibilità (dotato di connettore SMA per antenna esterna);  basato su tecnologia 100% italiana open hardware di openPicus il controller RFID HF è dotato di intelligenza a bordo (processore CPU) e interfaccia per microSD (memoria di massa per memorizzazione dati), da qui l'aggettivo smart nel suo nome; inoltre: numerosi I/O (es. buzzer, segnalazioni luminose, relè, etc..), ed è proposto anche nelle versioni WiFi e Mobile GSM/GPRS.

  • Box Desktop compatto 121.9 x 78.7 x 33 mm.
  • CPU: 16 Bit Microchip 16Mips@32Mhz, 256K Flash, 16K Ram.
  • Interfaccia Host: Wireless Wi-Fi 802.11 b/g/n
  • Controller Multi standard per tag ISO 15693, ISO14443-A, ISO14443-B (Es. mifare, my-d, STM, Jewel etc.), NFC, Calypso
  • RF power 250 mW +/- 2 dB. Range di lettura/scrittura fino a 10 cm. Connettore SMA per antenna esterna 50 ohm.
  • Supporto per applicazioni NFC e Calypso (ATM – Ticketing nei Trasporti). Data rates up to 106 kBit/s.
  • Standard Firmware: On board OBID FEIG management protocol. Protocol Modes:
    , direct Lan Scan Mode, Lan/Internet
     (TCP). Dataset with time stamp. Trigger wake-up (2 inputs), Tag on presence (3 Outputs). Possibilità di applicazioni custom su richiesta.
  • Altre caratteristiche: Real Time Clock/Calendar con batteria tampone; slot per Micro SD memory card.
  • Input/Output & Segnalazione: 4 x digital input, 3 x digital output, 1 x output relay 24V @ 1A 1 x Led bicolor & internal buzzer.
  • Connettori interni: MiniUSB per upgrade Firmware upgrade & debug. 4 x digital input, 4 x digital output (solo versione Ethernet), buzzer, 1 x SPI interface, 1 x I2C Interface.
  • Firmware upgradabile attraverso Flash-EEPROM
Modelli:
  • ID RED.MR80.FLY-E – Reader RFID HF RedWave SmartFly Cloud Ethernet. CPU & I/O, antenna esterna. CPU: 16 Bit Processor 16Mips@32Mhz, 256K Flash, 16K Ram. Web Server on Board. Host Interfaces: Lan Ethernet RJ45 (10/100). Operating frequency: 13,56 MHz. HF Multi-ISO (ISO15693, ISO14443-A/B & NFC). Antenna: SMA-female plug for external HF 50 ohm antenna (Power Supply 12VDC/2,5 A included). RF power: 250 mW. Range up to 26 cm. (depending on tag & antenna). Input/Output: 3 x digital output, 1 x relè 24 VDC/1A, 4 x digital input, 1 x buzzer, 1 x Led bicolor, 1 x SPI interface, 1 x I2C Interface. Real Time Clock/Calendar with battery. Slot for Micro SD memory card. Connectors: 1 x Lan Ethernet RJ45 (to host), RJ50 10 wire for external I/O, power connector for external 12 Volt DC (Power Supply 12VDC/2,5 A included). Power consumption: max. 3 W. Standard FirmWare: on board OBID FEIG management protocol, possibility of custom applications (on request). Protocol Modes: FEIG ISO Host Mode, Direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Dimensions: 121.9 x 78.7 x 33 mm. Firmware upgradable. – (pn 9916-550-20)
  • ID RED.MR80.FLY-W – Reader RFID HF RedWave SmartFly Cloud Wi-Fi. CPU & I/O, antenna esterna. CPU: 16 Bit Processor 16Mips@32Mhz, 256K Flash, 16K Ram. Web Server on Board. Host Interfaces: Wi-Fi controller 802.11 b/g/n. Operating frequency: 13,56 MHz. HF Multi-ISO (ISO15693, ISO14443-A/B & NFC). Antenna: SMA-female plug for external HF 50 ohm antenna (Power Supply 12VDC/2,5 A included). RF power: 250 mW. Range up to 26 cm. (depending on tag & antenna). Input/Output: 3 x digital output, 1 x relè 24 VDC/1A, 4 x digital input, 1 x buzzer, 1 x Led bicolor, 1 x SPI interface, 1 x I2C Interface. Real Time Clock/Calendar with battery. Slot for Micro SD memory card. Connectors: RJ50 10 wire for external I/O, power connector for external 12 Volt DC (not included). Power consumption: max. 3 W. Standard FirmWare: on board OBID FEIG management protocol, possibility of custom applications (on request). Protocol Modes: FEIG ISO Host Mode, Direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Dimensions: 121.9 x 78.7 x 33 mm. Firmware upgradable. – (pn 9916-554-20)
Altri modelli della famiglia RedWave Smart Cloud Reader NFC ed RFID HF:
  • ID RED.PR80.FLY-E – Reader RFID HF RedWave SmartFly Cloud Ethernet. CPU & I/O, antenna integrata. CPU: 16 Bit Processor 16Mips@32Mhz, 256K Flash, 16K Ram. Web Server on Board. Host Interfaces: Lan Ethernet RJ45 (10/100). Operating frequency: 13,56 MHz. HF Multi-ISO (ISO15693, ISO14443-A/B & NFC). RF power: 250 mW. Range up to 10 cm. (depending on tag). Input/Output: 3 x digital output, 1 x relè 24 VDC/1A, 4 x digital input, 1 x buzzer, 1 x Led bicolor, 1 x SPI interface, 1 x I2C Interface. Real Time Clock/Calendar with battery. Slot for Micro SD memory card. Connectors: 1 x Lan Ethernet RJ45 (to host), RJ50 10 wire for external I/O, power connector for external 12 Volt DC (Power Supply 12VDC/2,5 A included). Power consumption: max. 3 W. Standard FirmWare: on board OBID FEIG management protocol, possibility of custom applications (on request). Protocol Modes: FEIG ISO Host Mode, Direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Dimensions: 121.9 x 78.7 x 33 mm. Firmware upgradable. – (pn 9916-550-10)
  • ID RED.PR80.FLY-W – Reader RFID HF RedWave SmartFly Cloud Wi-Fi. CPU & I/O, antenna integrata. CPU: 16 Bit Processor 16Mips@32Mhz, 256K Flash, 16K Ram. Web Server on Board. Host Interfaces: Wi-Fi controller 802.11 b/g/n. Operating frequency: 13,56 MHz. HF Multi-ISO (ISO15693, ISO14443-A/B & NFC). RF power: 250 mW. Range up to 10 cm. (depending on tag). Input/Output: 3 x digital output, 1 x relè 24 VDC/1A, 4 x digital input, 1 x buzzer, 1 x Led bicolor, 1 x SPI interface, 1 x I2C Interface. Real Time Clock/Calendar with battery. Slot for Micro SD memory card. Connectors: RJ50 10 wire for external I/O, power connector for external 12 Volt DC (Power Supply 12VDC/2,5 A included). Power consumption: max. 3 W. Standard FirmWare: on board OBID FEIG management protocol, possibility of custom applications (on request). Protocol Modes: FEIG ISO Host Mode, Direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Dimensions: 121.9 x 78.7 x 33 mm. Firmware upgradable. – (pn 9916-554-10)

Il Wi-Fi Controller RFID HF RED.MR80.FLY-W può trovare molteplici sbocchi applicativi: Building Automation, automazione di processo ed industry (rilevamento dei dati di produzione da remoto grazie agli I/O), Temporary Store e retail, contaminazione tra eventi reali e social network (Facebook Like Machine), Internet of Things (la Smart FlyBoard permette di gestire da remoto il controller RFID collegato a sensori) e soluzioni stand alone di smart parking, M2M, scaffali intelligenti comandati da remoto: il tutto in ottica Cloud!
