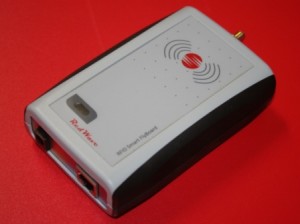

RED.MR80.FLY-M Controller RFID HF RedWave SmartFly Mobile GPRS


Controller RFID HF ed NFC multi-ISO con CPU e Firmware modificabile, Connettività Mobile GSM/GPRS per la lettura/scrittura di transponders NFC HF (13,56 MHz). Antenna esterna 50 ohm, buzzer, connettore RJ50 per I/O e relè

Mobile GSM/GPRS Smart Cloud Controller RFID HF ed NFC per antenna esterna – Famiglia RedWave Smart FlyBoard by RFID Global. Standard ISO 18000-3 HF per Building Automation, Fidelity, Ticketing, eVisa, micro-pagamenti, Temporary Store e retail, contaminazione tra eventi reali e social network (RFID Facebook Like Machine), Internet of Things (la Smart FlyBoard permette di gestire da remoto il controller RFID collegato a sensori), M2M, etc…

RedWave controller powered by
Logo_FEIG OBID-by-FEIG-i-scan_HF

[tabs slidertype=”top tabs” autospeed=”2000″] [tabcontainer][tabtext]Caratteristiche

Principali[/tabtext] [tabtext]Modelli e

Opzioni [/tabtext][tabtext]Prodotti

Correlati[/tabtext][tabtext]Applicazioni e

Soluzioni[/tabtext][tabtext]Download

Datasheet[/tabtext] [/tabcontainer] [tabcontent] [tab]

RedWave RFID Smart FlyBoard collegamento al Web Server On Board con Tablet

RedWave Smart Cloud NFC ed RFID HF – collegamento al Web Server On Board con Tablet

Nota distintiva del RedWave Smart Controller RFID RED.MR80.FLY-M è la modalità con cui sono gestiti i dati “catturati” dal reader (firmware standard): ISO Host Mode prevede che i comandi di lettura del tag da parte del reader siano lanciati dall’host, mentre con la modalità Notification Mode l’host riceve le letture da molteplici reader RFID stando in ascolto su una predeterminata porta IP. Tra le peculiarità spicca il web server a bordo che trasforma un browser nell’interfaccia utente per configurare e gestire via web il controller RFID e i numerosi Input/Output: ciò permette la trasmissione e ricezione dati via internet, controllando così il proprio device da qualunque luogo, anche in modalità mobile.

RED.MR80.FLY-M Mid-Range Reader RFID HF RedWave SmartFly Mobile GPRS

RED.MR80.FLY-M Mid-Range Reader RFID HF RedWave SmartFly Mobile GPRS

E’ prevista anche la possibilità di sviluppo di firmware custom utilizzando ambiente Open Source (C language & Open IDE), per creare soluzioni verticali ed indipendenti, stand-alone, con ”intelligenza” a bordo e collegamenti ad host server via internet (cloud): il vantaggio di questa flessibilità consiste nell’introdurre rapidamente nel mercato nuovi prodotti o soluzioni anche in limitate quantità e ridurre il Time to Market!

Il Controller RFID HF Mobile GPRS RED.MR80.FLY-M della famiglia RedWave di RFID Global combina piccole dimensioni e flessibilità (dotato di connettore SMA per antenna esterna);  basato su tecnologia 100% italiana open hardware di openPicus il controller RFID HF è dotato di intelligenza a bordo (processore CPU) e interfaccia per microSD (memoria di massa per memorizzazione dati), da qui l’aggettivo smart nel suo nome; inoltre: numerosi I/O (es. buzzer, segnalazioni luminose, relè, etc..), ed è proposto anche nelle versioni Ethernet e Wi-Fi.

  • Box Desktop compatto 121.9 x 78.7 x 33 mm.
  • CPU: 16 Bit Microchip 16Mips@32Mhz, 256K Flash, 16K Ram.
  • Interfaccia Host: Mobile GSM/GPRS (Sagem HILO v2), antenna integrata e slot per TLC SIM
  • Controller Multi standard per tag ISO 15693, ISO14443-A, ISO14443-B (Es. mifare, my-d, STM, Jewel etc.), NFC, Calypso
  • RF power 250 mW +/- 2 dB. Range di lettura/scrittura fino a 10 cm. Connettore SMA per antenna esterna 50 ohm.
  • Supporto per applicazioni NFC e Calypso (ATM – Ticketing nei Trasporti). Data rates up to 106 kBit/s.
  • Standard Firmware: On board OBID FEIG management protocol. Protocol Modes: ISO Host Mode, direct Lan Scan Mode, Lan/Internet Notification Mode (TCP). Dataset with time stamp. Trigger wake-up (2 inputs), Tag on presence (3 Outputs). Possibilità di applicazioni custom su richiesta.
  • Altre caratteristiche: Real Time Clock/Calendar con batteria tampone; slot per Micro SD memory card.
  • Input/Output & Segnalazione: 4 x digital input, 3 x digital output, 1 x output relay 24V @ 1A 1 x Led bicolor & internal buzzer.
  • Connettori interni: MiniUSB per upgrade Firmware upgrade & debug. 4 x digital input, 4 x digital output (solo versione Ethernet), buzzer, 1 x SPI interface, 1 x I2C Interface.
  • Firmware upgradabile attraverso Flash-EEPROM

[button link=”/prodotti-rfid/rfid-smart-flyboard-redwave/” color=”red”] RFID Smart FlyBoard RedWave – dettagli tecnici[/button]
