BluEpyc BLE EchoBeacon USB dongle

Tag Beacons linked to person/item transmit  the data with limited power & energy consumption.

EchoBeacon receives Beacon’s data (monitoring area based on Beacons power transmission).

EchoBeacons re-transimt the collected Beacon’s data to the BLE Gateway, distance up to 100 mt.

  • BluEpyc BLE DataFlow: from Beacon to Gateway through EchoBeacon Repeater
Download Datasheet

BluEpyc BLE EchoBeacon USB dongle is a small and inexpensive device that allows identification and localization of people or objects with beacon tags in limited areas.

Highlight

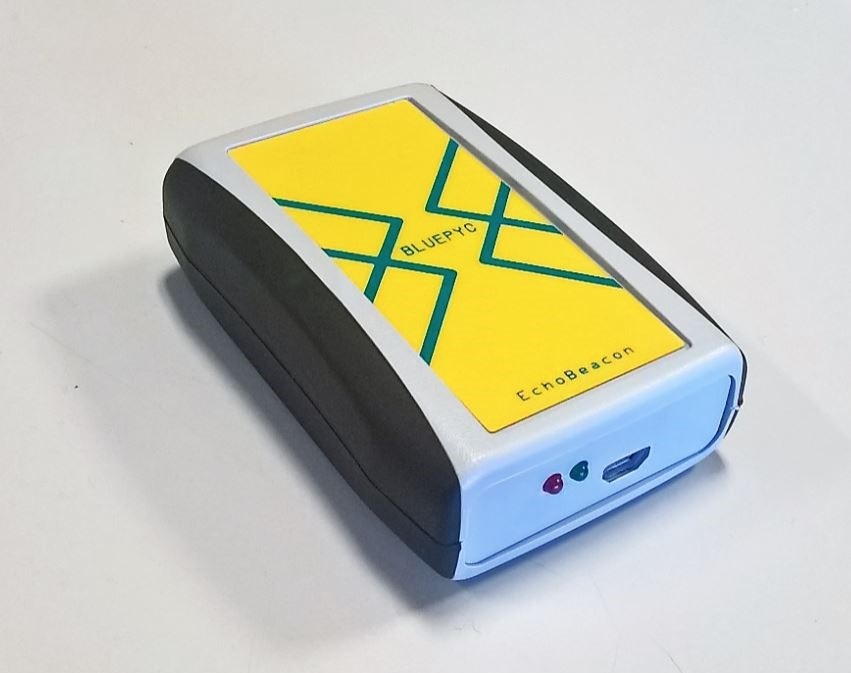

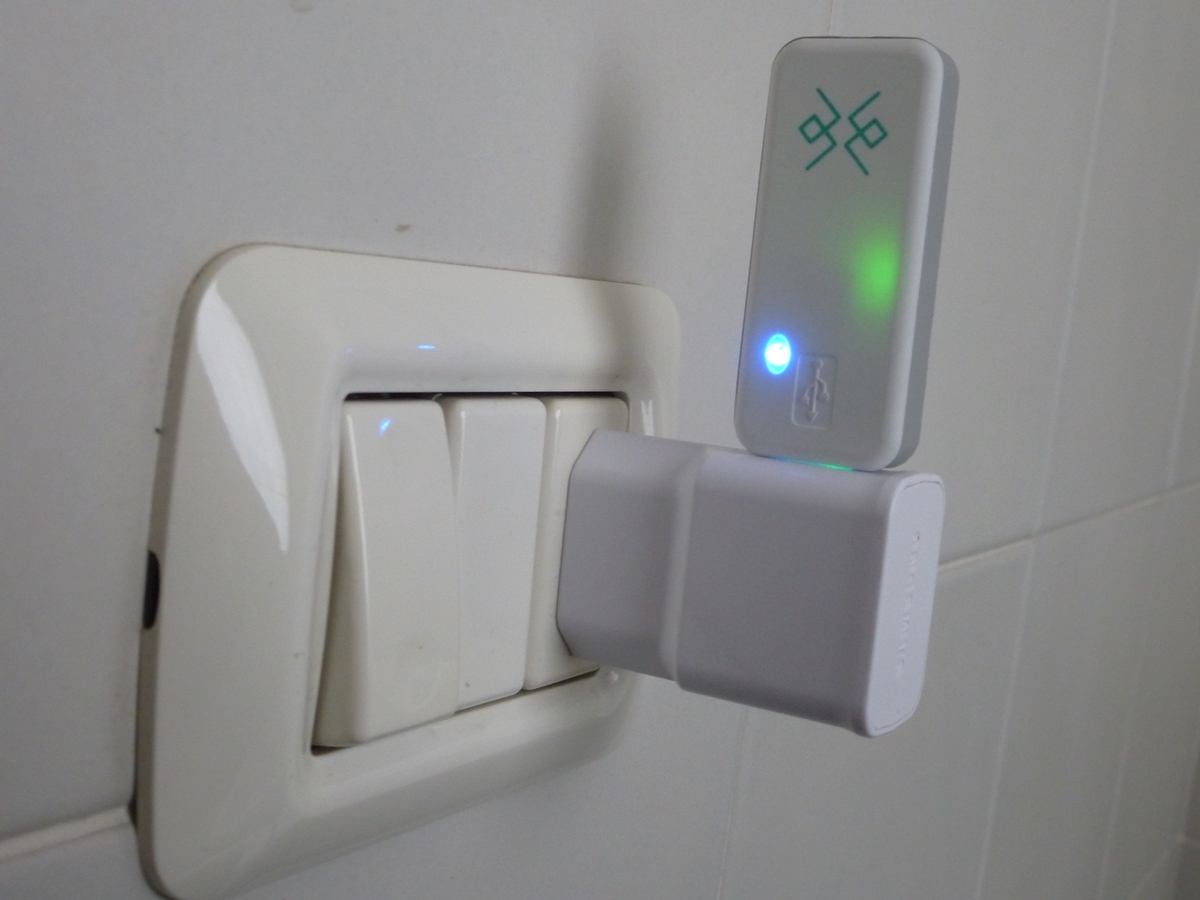

  • Unplug connection. BLE EchoBeacon USB or Micro USB (*) power supply: easy installation & relocation.
  • Responsive: customizable firmware, memory for associated beacons, adjustable parameters, etc…
  • Low cost device to implement micro localization & track position of people & objects wearing Beacons.
  • IoT & Active RFID application. Real Time Location System & Indoor Positioning System (zone method).
  • Some application scenarios: vehicle & people access control (also stand alone), home & building management , safety (hospital, construction site, etc…), process automation, asset & facility management, smart city (parking, leisure & tourism, etc…)

(*)   Depending on model

Low cost & unplug device to implement micro localization & change of position of people & objects equipped with Bluetooth Low Energy Beacons. EchoBeacon USB receives Beacon’s data linked to person/item and re-transmit the collected data to the BLE Gateway, distance up to 100 mt. Responsive to specific application needs: customizable firmware, memory for associated beacons, adjustable parameters.

  • Operation Frequency: 2,4 GHz. IEEE Standard: 802.15.1 (Bluetooth 4.x Low Energy). Bluetooth integrated antenna.
  • Reading range: depends on the beacon’s transmission power and on RSSI filtering.
  • Transmission Range: up to 100 meters (depending on environment & configuration).
  • Possibility of custom applications on-board (on request)

BluEpyc BLE EchoBeacon Repeater DataFlow

BluEpyc BLE DataFlow: from Beacon to Gateway through EchoBeacon Repeater

Standard Firmware EchoBeacon ID (2 byte); on-board beacon ID white list, anti-collision beacons reading (number depends on environment and configuration); read Beacons Advertising & RSSI; BLE notification; filtering on beacons mask, white list & RSSI Level. Possibility of custom applications (on request)
Adjustable parameters Through BLE service & mobile APP: EchoBeacon ID, Reading Time, Transmission Time, Watch Dog Time, filtering parameter (adv mask & RSSI), beacon white list, transmission Power (16 step), output relé (Depending on model)
