BluEpyc BLE Disk Beacon & Accessories

BluEpyc BLE Disk Beacon with push button & label with Mac Address
Low cost Bluetooth Low Energy Beacons with a variety of silicone accessories.

BluEpyc BLE Beacon  – low cost devices to implement real time identification, localization & track position of people & objects wearing Beacons. Beacons are also available with accelerometer, temperature and humidity sensors.  Small dimensions  and mounting accessories allow easy use in both indoor and outdoor situations. IoT & Active RFID application. Real Time Location System & Indoor Positioning System (zone method).

Highlight

  • ON/OFF push button (additional functions: reset, alarm). 2 Led: blue & red.
  • Advertising Interval and Transmission Power (communication distance) can be set via software On the Air (APP, BluEpyc Gateway or BluEpyc EchoBeacon).
  • Transmission distance: up to 120 meters (in open air). Power: 4 different levels can be set via OTA (-23dB, -6dB, 0dB, 4dB)
  • BLE Disk Beacon is able to manage the different advertising modes: standard BLE, Apple iBeacon, Google Eddystone or custom advertising on request.
  • Protection rating suitable for outdoor use (IP 65 with silicone accessory). Replaceable battery. Battery life up to 1 year.
  • Some application scenarios: vehicle & people access control (also stand alone), home & building management , safety (hospital, construction site, etc…), process automation, asset & facility management, smart city (parking, leisure & tourism, etc…)
  • Printed label with Mac Address (QR Code and in clear) and Friendy Name (for association and coding).scenarios
Operating frequency 2,4 GHz. IEEE Standard: 802.15.1 (Bluetooth 4.x Low Energy). Bluetooth integrated antenna.
Accurate digital RSSI.
Transmission Transmission distance: up to 80 meters. Transmission Power: 4 different levels can be set
Transmission interval can be set via software OTA (from 100 msec. to 10 sec. in step of 100ms)
Sensors Accelerometer, temperature and humidity sensors available
O.S. Supported Operating System Supported IOS and Android. iBeacon or Eddystone standard
Power supply Battery: replaceable CR2032 3V Li. Battery life: One year (with ping rate: 1 second)
Input/Output Led bi-color (Red & Green) for status indication.
Buttons for On/Off.
Case Size: 31 mm diameter, 8.5 mm thickness. Weight: 4,2 gr.
Material: PC (Polycarbonate).
Temperature range Operation: -25° C up to 75° C  –  Storage: -25° C up to 85° C
Delivery format Singulated. Printed label with Mac Address (QR Code and in clear) and Friendy Name (for association and coding).
Customization Mounting accessories IP67 available for outdoor use
Different colors available. Customizable with color printing of logo
Standard Firmware Different advertising modes: Apple iBeacon, Google Eddystone or custom advertising on request.
BE-DSK-BLE BluEpyc BLE Disk Beacon – Tag Bluetooth Low Energy
– Active RFID & IPS (Indoor Positioning System zones method).
BE-DSK-A-BLE BluEpyc BLE Disk Beacon – Tag Bluetooth Low Energy with accelerometer sensor
– Active RFID & IPS (Indoor Positioning System zones method).
BE-DSK-TH-BLE BluEpyc BLE Disk Beacon – Tag Bluetooth Low Energy with temperature and humidity sensors
– Active RFID & IPS (Indoor Positioning System zones method).
BE-DSK-ATH-BLE BluEpyc BLE Disk Beacon – Tag Bluetooth Low Energy with accelerometer, temperature and humidity sensors
– Active RFID & IPS (Indoor Positioning System zones method).

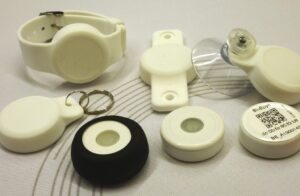

BluEpyc BLE Disk Beacon accessories

BE-PC-ACC Silicone Protection Case Accessory for Disk Beacons. 35mm diameter. Material: silicone, black color. Class protection IP65
BE-WS-ACC Silicone Wristband Accessory for BE Disk Beacons. Length: 235 mm. Thickness: 11 mm. Watchcase diameter: Ø34 mm. Width: 18mm. Material: Silicone, White Color. Class protection IP65. Different color available (also customizable with logos, ask for price.)
BE-KF-ACC Silicone Keyfob Accessory for BE Disk Beacons. Dimension: 45x35mm. Material: Silicone, White Color. Class protection IP65. Different color available (also customizable with logos, ask for price.)
BE-WM-ACC Silicone Wall Mount Accessory for BE Disk Beacons. Dimension: 75x35mm with two holes. Material: Silicone, White Color. Class protection IP65. Different color available (also customizable with logos, ask for price.)
  • Access control (vehicle & person)
  • Home Automation & Building Management (hospitality, company etc.)
  • Process Automation & Monitoring. Maintenance
  • Safety (e.g. in hospital, construction site)
  • Asset & Facility Management: traceability, positioning, monitoring, sensor management (asset & people)
  • Smart City: transportation, ticketing, waste management, citizen service, parking
  • Tourism and Leisure: museum, exhibition, village & resort, amusement park etc.
